CNC T38 Thread Drill Rod with 3050mm Length and Carbon Steel Construction for Rock Drilling

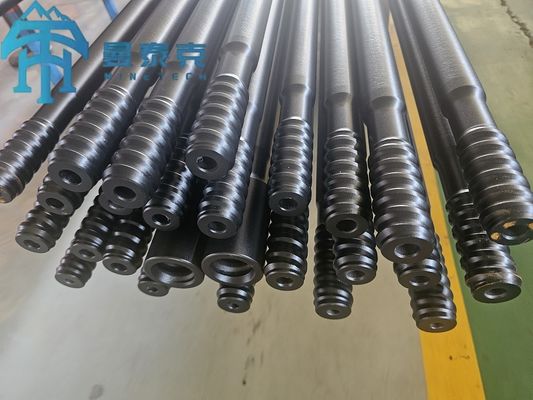

Grande immagine : CNC T38 Thread Drill Rod with 3050mm Length and Carbon Steel Construction for Rock Drilling

Dettagli:

Luogo di origine:	Cina
Marca:	MTH
Certificazione:	ISO9001
Numero di modello:	Accessorio per impianto di perforazione

Termini di pagamento e spedizione:

Prezzo:	$3-$300
Imballaggi particolari:	Cassa o fascio in legno
Termini di pagamento:	T/T, Unione Occidentale

Contatto

CNC T38 Thread Drill Rod with 3050mm Length and Carbon Steel Construction for Rock Drilling

descrizione

Nome del prodotto:	Strumenti di perforazione rocciosa	Parola chiave:	Asta di perforazione con filettatura CNC T38
Filo:	T38	Lunghezza:	3050 mm
Materiale:	Acciaio al carbonio	Tecnologia di produzione:	Tempra e rinvenimento
Processo:	CNC e trattamento termico	Pacchetto:	Fascio
Evidenziare:	CNC T38 thread drill rod , underground rock drilling tools , rock drilling tools with warranty

CNC T38 Thread Drill Rod For Underground Rock Drilling Tools

High-Performance CNC T38 Thread Drill Rod With Customized Features

Our high-performance threaded drill rods are precision-engineered components designed for reliability and efficiency in the most challenging drilling environments. Manufactured from premium carbon and alloy steels, these rods can be fully customized to meet the specific technical requirements and geological conditions of your operation.

Hexagonal Rods: Recognized for their superior rigidity and weight, hexagonal rods provide more efficient energy transfer from the drill rig to the drill bit, resulting in increased percussive force and faster penetration rates. Their flat surfaces also create larger flushing channels, significantly improving the removal of drill cuttings and debris from the borehole.

Round Rods: Generally lighter and more flexible than their hexagonal counterparts, round rods are the preferred choice for many extension drilling applications, especially in longer drill strings where reduced weight can minimize energy loss and improve handling.

CNC T38 Thread Drill Rod Technical Specifications

Thread Type	R22, R25, R28, R32, R38, T38, T45, T51
Diameter	Hex 25, Hex 28, Hex 32, Hex 35, RD 39, RD 46, RD 52
Rod Type	Round type and hexagonal type
Material	High strength alloy steel imported from top level steel manufacturer
Processing	CNC milling and proprietary heat treatment process
Certification	ISO9001
MOQ	No MOQ required for testing and trial order
Drill Rod Type	Male-Male Rod, Male-Female Rod

Manufacture Advantage Of CNC T38 Thread Drill Rod

Proprietary Heat Treatment & Carburization: To maximize performance and service life, our drill rods undergo a specialized carburization process as part of their heat treatment. This advanced technique involves diffusing carbon into the surface of the steel at high temperatures. The result is an exceptionally hard, wear-resistant exterior that maintains a tough, shock-absorbent core.
Premium Material Selection: We utilize only high-strength alloy steel sourced from top-tier international manufacturers. This ensures a consistent, high-quality metallurgical structure that forms the foundation of a durable and reliable drill rod.
Precision CNC Machining: All threads are meticulously machined using Computer Numerical Control (CNC) systems. This guarantees perfect thread form, pitch, and alignment, ensuring seamless, secure connections between rods and with other drill string components.

Applications Of CNC T38 Thread Drill Rod

Underground Mining: Essential for extracting valuable metals and minerals from deep underground deposits, providing the robust linkage needed for high-impact drilling.
Drifting and Tunneling: Used in creating linear passageways (drifts) to connect underground work sites and in the construction of large, sealed tunnels for ore transport and infrastructure.
Benching and Long Hole Drilling: Critical in benching operations, which involve horizontal drilling to create ledges for excavation, and in long hole drilling for creating vertical or inclined shafts to access deep ore bodies.
Quarrying and Open-Pit Mining: Employed in quarrying for extracting dimension stone, limestone, and other materials at shallower depths, and in large-scale open-pit mining operations that require deep, high-volume drilling.

Comprehensive Support & Services

We are committed to supporting your operations beyond the point of sale. Our comprehensive support package includes:

Technical Support: Expert advice on rod selection, application optimization, and troubleshooting.
Installation & Maintenance Guidance: Best-practice guidelines and on-site support for proper assembly and upkeep.
Repair Services: Expert refurbishment and repair services to restore damaged rods to working condition.
24/7 Parts & Service: Around-the-clock access to our experienced technicians and a readily available inventory of genuine replacement parts to minimize downtime.
